TCC - Vacuum Continuous Casting Machines

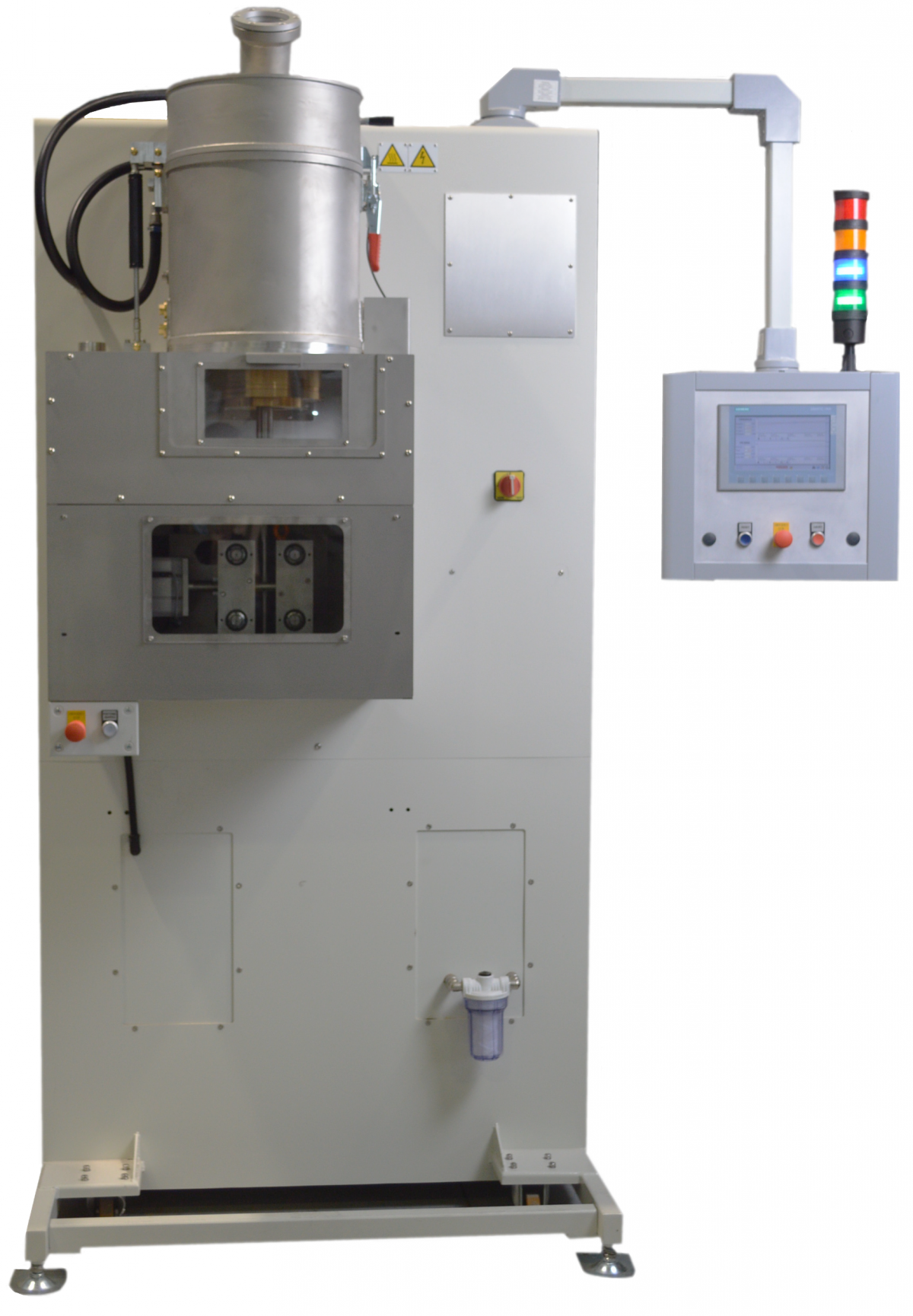

TCC Vacuum Continuous Casting machines have been design with the most up-to-date technologies to give you semi-finished products with the best quality and in the shortest time.
With only one machine, you will be able to obtain the semi-finished product you desire, such as wires, sheets or tubes.

TCC machines are equipped with Gas Wash Purge procedure which greatly reduce oxygen content with the vacuum pump and fills back the melting chamber with inert gas, preventing the oxidation of the alloy in a very fast and efficient way.

Medium frequency induction heating stirs the melted alloy and leads to a very high homogeneity, while the temperature is constantly monitored by a number of independent temperature controls.

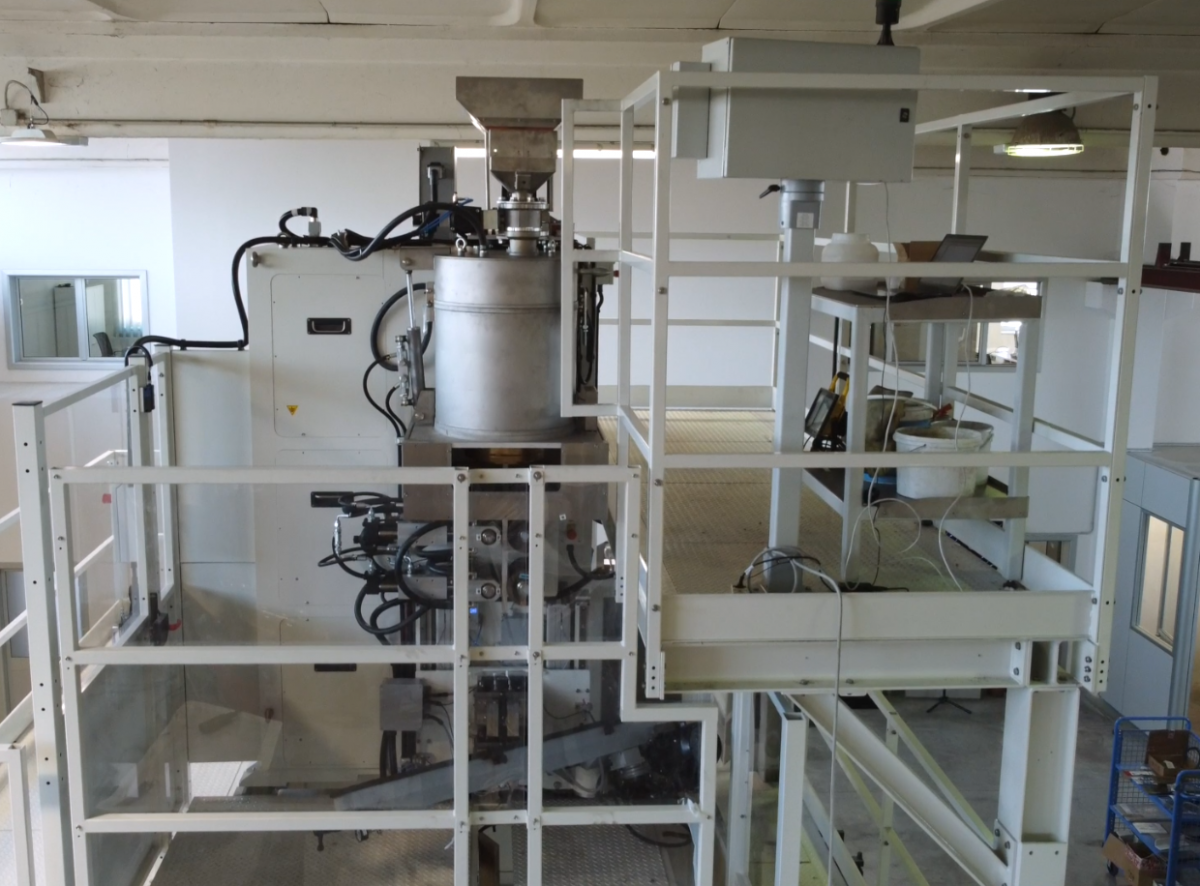

As on option, it is possible to have an additional vacuum loading chamber, positioned on top of the cover with automatic crucible feeding mechanism, for continuous production.

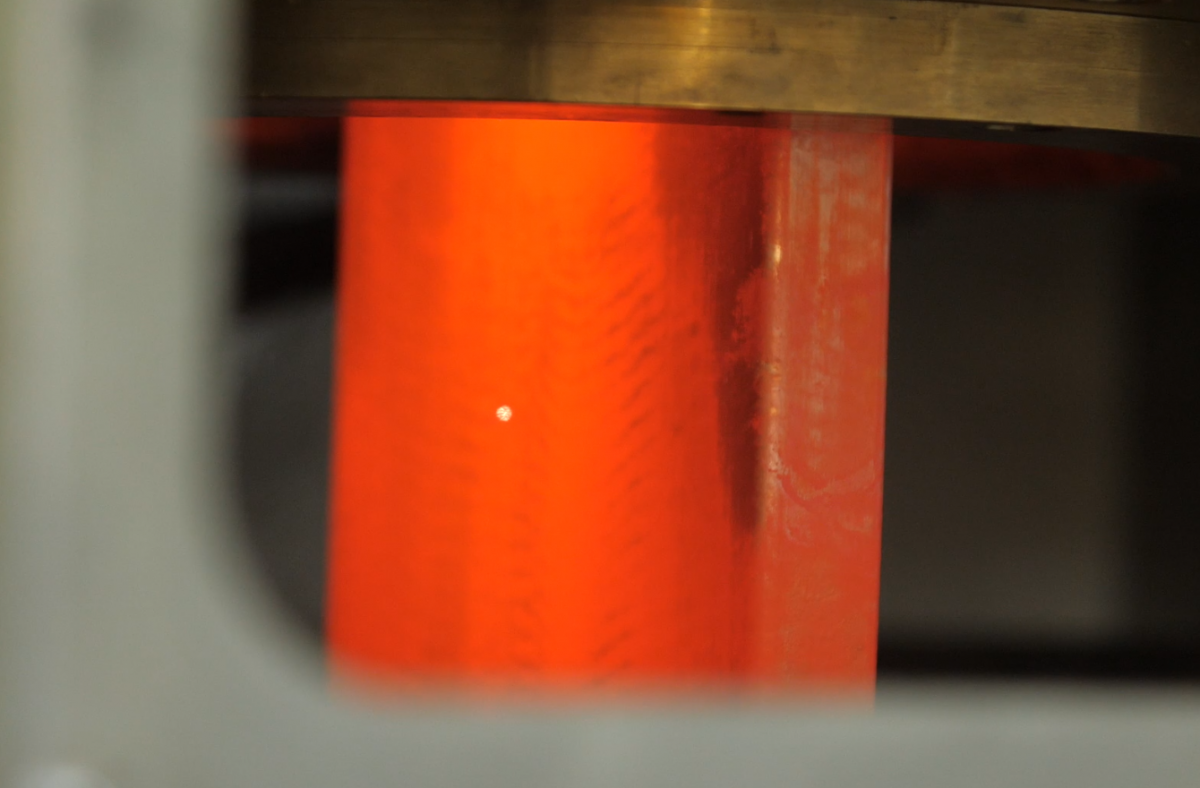

During drawing, the temperature of the die is constantly monitored to obtain always a very high density and quality in the semi-finished products. In addition, there is an independent temperature control for preventing liquid metal leakage, by using an optical pyrometer aiming directly on the bar coming out from the die.

The drawing unit can also be equipped with an extra induction generator, which allows to restart the cycle after the production shutdown.

Pulling unit is equipped with devices for automatic detection of slippage phenomena between the roller and the semi-finished product. Another specific device will also detects the end of the cycle, when the bar reaches its end.

To reduce the risk of oxidation during drawing, the semi-finished products are under a constant inert gas flushing as they come out from the die.

In addition, when a quicker cooling is required for harness control, semi-finished products can be cooled down by a direct water sprinkle aiming on their profile.

Hydraulic or sawing cutting on the run is available on request, with automatic and programmable measurement of the profile length.

TCC machines are equipped with a data acquisition system which allows the sampling of the process variables with reporting function after every cast. Data can be displayed in graphic format or exported to external PC for analysis.


Technical data


  Small Medium Large

  TCC10-280cc TCC12-380cc TCC12-500cc TCC15-1000cc TCC15-1400cc TCC20-2000cc TCC35-4000cc TCC45-7000cc
Number of casting programs 100 100 100 100 100 100 unlimited unlimited
Crucible working capacity 1.5 Kg Ag
3 Kg Au
2 Kg Ag
4 Kg Au
3 Kg Ag
5.5 Kg Au
6 Kg Ag
12 Kg Au
8.5 Kg Ag
16 Kg Au
12 Kg Ag
23 Kg Au
25 Kg Ag
46 Kg Au
44 Kg Ag
81 Kg Au
Speed of the pulling unit min 10 mm/min
max 999 mm/min
Wire diameter min 3 - max 20 mm ⌀ min 3 - max 40 mm ⌀ min 3 - max 70 mm ⌀
Simultaneous wire casting max 2 wires max 3 wires max 6 wires
Sheet size (lxw) max 60 x 8 mm max 90 x 10 mm max 130 x 20 mm
Tube diameter max 45 mm ⌀ max 85 mm ⌀ max 90 mm ⌀
Profile protection with protective gas flushing Provided Provided Provided Provided Provided Provided Provided Provided
Automatic crucible feeding unit  Available on request Available on request Available on request Available on request Available on request Available on request Available on request Available on request
Extra induction generator        Available on request Available on request Available on request Available on request Available on request

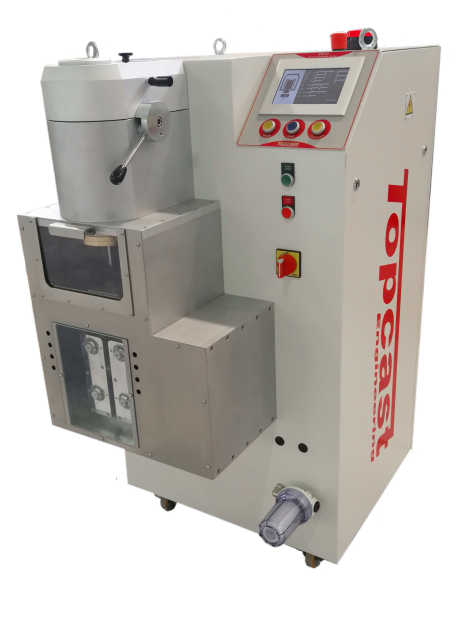

4 wheels pulling unit  Provided Provided Provided Provided Provided Provided Provided Provided
Cooling system by water sprinkles Provided Provided Provided Available on request Available on request Available on request Available on request Available on request
Bending Unit Available on request Available on request Available on request Available on request Available on request Available on request Available on request Available on request
Video camera for remote supervision             Available on request Available on request
Cutting unit on the run Available on request Available on request Available on request Available on request Available on request Available on request Available on request Available on request
Induction heating power 10 kW 12 kW 12 kW 15 kW 15 kW 20 kW 35 kW 45 kW
Vacuum pump Built-in 4 m3/h Built-in 25 m3/h
Max. temperature Provided 1250°C /  Available on request 1600 °C
Double thermocouple on crucible       Available on request Available on request Available on request Available on request Available on request
Industry 4.0 Provided Provided Provided Provided Provided Provided Provided Provided
Autotest with data report Provided Provided Provided Provided Provided Provided Provided Provided
Monitoring system for data acquisition Provided Provided Provided Provided Provided Provided Provided Provided
Vacuum leakage detector Provided Provided Provided Provided Provided Provided Provided Provided
Oxygen Analyzer       Available on request Available on request Available on request Available on request Available on request
Remote interface Provided Provided Provided Provided Provided Provided Provided Provided
Main alloys  Gold (Au), Silver (Ag), Copper (Cu), Brass, Bronze, Aluminium (Al) and their alloys





Provided Provided - Available on request Available on request
